Available data types

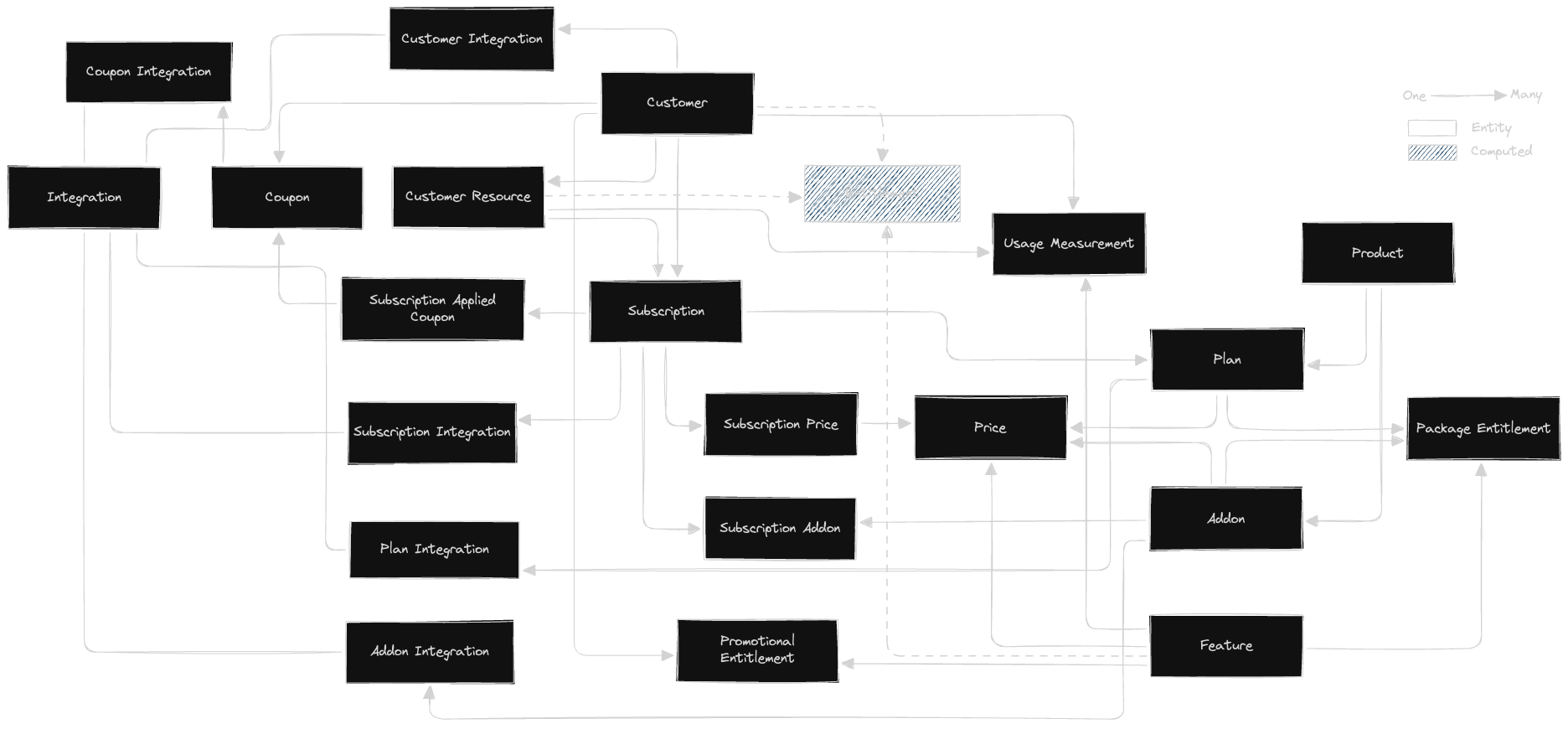

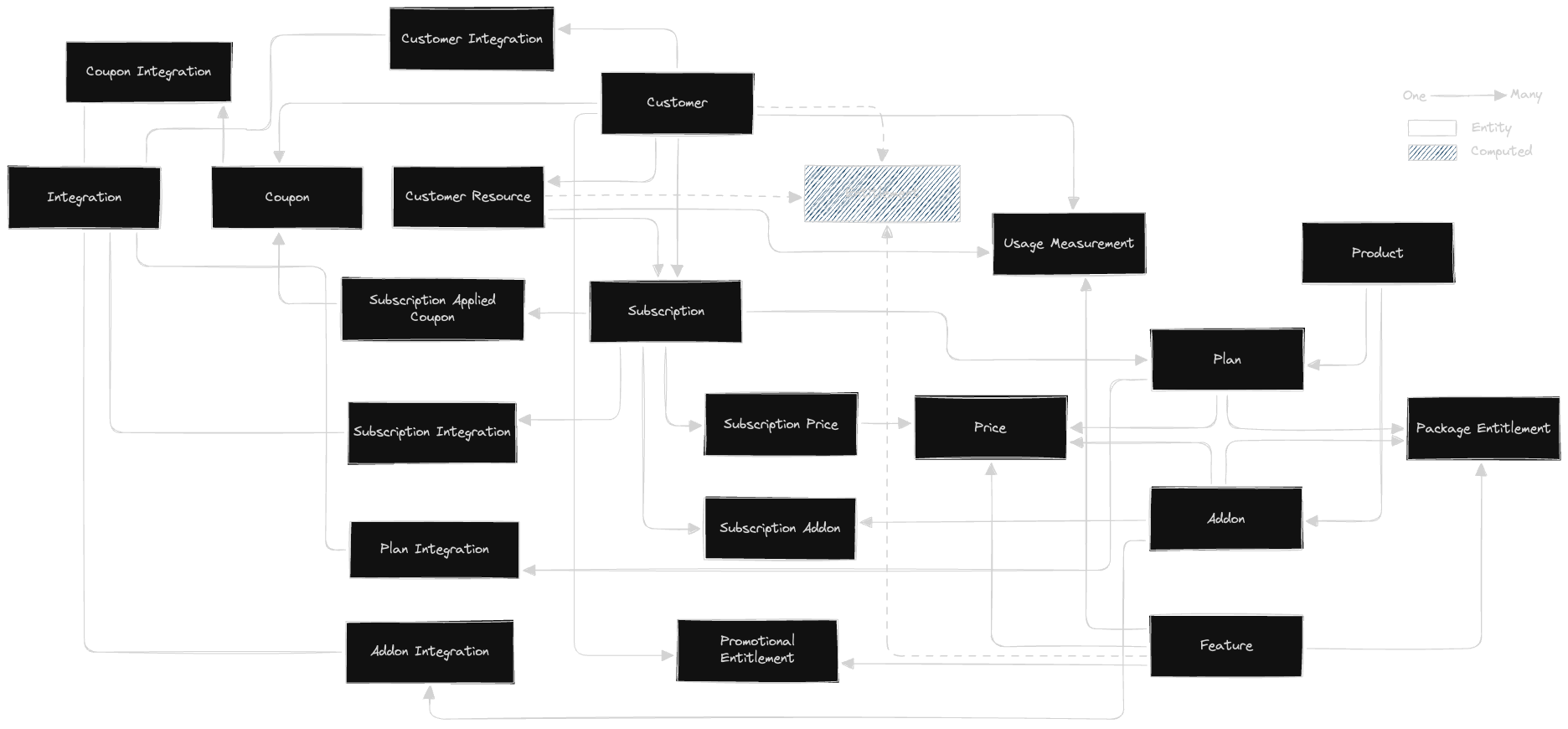

The following diagram describes the relations between the available data types:

Notes

Mandatory fields are represented using a NOT NULL column constraint.
DateTime field type is a string representing a date and time in ISO timestamp format.
JSON field type represents JSON object literals containing key/value pairs.

Customer

Represents a customer of your application, which can be either an individual or an organization. Each customer can have a subscription to a product, a set of entitlements, and usage records.

Table: CUSTOMERS

Column	Type	Mandatory	Description
CUSTOMER_ID	VARCHAR	Yes	Customer identifier
EMAIL	VARCHAR		Email address
NAME	VARCHAR		Customer name
BILLING_CURRENCY	VARCHAR		Preferred billing currency e.g USD
BILLING_ID	VARCHAR		Identifier of the customer in the billing solution that’s integrated with Stigg, i.e. Stripe ID
BILLING_LINK_URL	VARCHAR		URL for the customer entity in the billing solution that’s integrated with Stigg
DEFAULT_PAYMENT_EXPIRATION_MONTH	NUMBER		Expiration month of the customer’s default payment method
DEFAULT_PAYMENT_EXPIRATION_YEAR	NUMBER		Expiration year of the customer’s default payment method
DEFAULT_PAYMENT_METHOD_ID	VARCHAR		ID of the customer’s default payment method in the billing solution (Stripe ID)
DEFAULT_PAYMENT_METHOD_LAST4_DIGITS	VARCHAR		Last 4 digits of customer’s default payment method
DEFAULT_PAYMENT_METHOD_TYPE	VARCHAR		Enum. Type of default payment method. One of: CARD, BANK
DELETED_AT	TIMESTAMP_TZ		Date and time of when the customer was archived
ENVIRONMENT_ID	VARCHAR	Yes	Environment identifier
HAS_ACTIVE_SUBSCRIPTION	BOOLEAN	Yes	Has an active subscription
ID	VARCHAR	Yes	Customer internal identifier in Stigg
UPDATED_AT	TIMESTAMP_TZ	Yes	Last update date and time
CREATED_AT	TIMESTAMP_TZ	Yes	Creation date and time
ADDITIONAL_META_DATA	VARCHAR		Additional metadata JSON in a text format
COUPON_ID	VARCHAR		Coupon ID of an applied coupon

Customer Resource

Represents a resource associated with a customer, such as a site or an app. Each resource can have its own subscription to a product, as well as a distinct set of entitlements and usage records.

Table: CUSTOMER_RESOURCES

Column	Type	Mandatory	Description
ENVIRONMENT_ID	VARCHAR	Yes	Environment identifier
RESOURCE_ID	VARCHAR	Yes	Resource identifier
CUSTOMER_ID	VARCHAR	Yes	Customer identifier
CREATED_AT	TIMESTAMP_TZ	Yes	Creation date and time
UPDATED_AT	TIMESTAMP_TZ	Yes	Last update date and time

Subscription

Represents the combination of functionalities to which a specific customer has access, including their limitations, the duration of access, and the associated cost. Subscriptions encompass both plans and add-ons.

Table: SUBSCRIPTIONS

Column	Type	Mandatory	Description
SUBSCRIPTION_ID	VARCHAR	Yes	Subscription Identifier
ENVIRONMENT_ID	VARCHAR	Yes	Environment identifier
ID	VARCHAR	Yes	Subscription internal identifier
CREATED_AT	TIMESTAMP_TZ	Yes	Creation date and time
UPDATED_AT	TIMESTAMP_TZ	Yes	Last update date and time
START_DATE	TIMESTAMP_TZ	Yes	Subscription start date
END_DATE	TIMESTAMP_TZ		Subscription end date
CANCELLATION_DATE	TIMESTAMP_TZ		Date of subscription cancellation
TRIAL_END_DATE	TIMESTAMP_TZ		End date of trial period
BILLING_ID	VARCHAR		Billing identifier (Stripe ID) of the subscription
OLD_BILLING_ID	VARCHAR		Previous billing identifier (Stripe ID), is set only for canceled or expired subscriptions.
BILLING_LINK_URL	VARCHAR		URL for the subscription entity in the billing solution (Stripe ID)
STATUS	VARCHAR	Yes	Enum. Subscription status. Can be one of: PAYMENT_PENDING, ACTIVE, EXPIRED, IN_TRIAL, CANCELED, NOT_STARTED.
RESOURCE_ID	VARCHAR		Resource identifier
IS_CUSTOM_PRICE_SUBSCRIPTION	BOOLEAN		Indicates if subscription has custom pricing (i.e. not self-served)
CURRENT_BILLING_PERIOD_START	TIMESTAMP_TZ		Start of the current billing period
CURRENT_BILLING_PERIOD_END	TIMESTAMP_TZ		End of the current billing period
PRICING_TYPE	VARCHAR	Yes	Enum. Type of pricing applied. Can be one of: FREE, PAID,CUSTOM.
ADDITIONAL_META_DATA	VARCHAR		Additional metadata
PAYMENT_COLLECTION	VARCHAR	Yes	Enum. Payment collection status. Can be one of: NOT_REQUIRED, PROCESSING, FAILED, ACTION_REQUIRED (= 3DS).
CUSTOMER_ID	VARCHAR	Yes	Associated customer identifier
PLAN_ID	VARCHAR	Yes	Subscription plan identifier
COUPON_ID	VARCHAR		This field is deprecated, use the `SUBSCRIPTION_APPLIED_COUPONS` relation table instead

Subscription Price

Represents the price of the subscription. Multiple prices can be associated with a single subscription to support a pricing model based on multiple billable metrics

Table: SUBSCRIPTION_PRICES

Column	Type	Mandatory	Description
ID	VARCHAR	Yes	Price internal identifier
CREATED_AT	TIMESTAMP_TZ	Yes	Creation date and time
UPDATED_AT	TIMESTAMP_TZ	Yes	Last update date and time
USAGE_LIMIT	NUMBER		Usage limit associated with the price
FEATURE_ID	VARCHAR		Identifier for the associated feature, if this price represents a billable metric
BILLING_MODEL	VARCHAR		Enum. Billing model used. Can be one of: FLAT_FEE, PER_UNIT, USAGE_BASED.
SUBSCRIPTION_ID	VARCHAR	Yes	Associated subscription identifier
PRICE_ID	VARCHAR		Associated plan or add-on price identifier
ENVIRONMENT_ID	VARCHAR	Yes	Environment identifier

Subscription Add-on

Represents the quantity of an add-on that is included in the subscription.

Table: SUBSCRIPTION_ADDONS

Column	Type	Mandatory	Description
ID	VARCHAR	Yes	SubscriptionAddon internal identifier
QUANTITY	NUMBER	Yes	Quantity of the add-on
CREATED_AT	TIMESTAMP_TZ	Yes	Creation date and time
UPDATED_AT	TIMESTAMP_TZ	Yes	Last update date and time
SUBSCRIPTION_ID	VARCHAR	Yes	Associated subscription identifier
ADDON_ID	VARCHAR	Yes	Associated add-on identifier
PRICE_ID	VARCHAR		Associated plan or add-on price identifier
ENVIRONMENT_ID	VARCHAR	Yes	Environment identifier

Subscription Applied Coupons

Represents a coupon entity attached to a subscription.

Table: SUBSCRIPTION_APPLIED_COUPONS

Column	Type	Mandatory	Description
ID	VARCHAR	Yes	Internal identifier
ENVIRONMENT_ID	VARCHAR	Yes	Environment identifier
CREATED_AT	TIMESTAMP_TZ	Yes	Creation date and time
UPDATED_AT	TIMESTAMP_TZ	Yes	Last update date and time
DELETED_AT	VARCHAR		Date and time the coupon was removed from the subscription
SUBSCRIPTION_ID	VARCHAR	Yes	Associated subscription identifier
COUPON_ID	VARCHAR	Yes	Associated coupon identifier
STATUS	VARCHAR	Yes	Enum - SubscriptionCouponStatus. Can be one of: `ACTIVE`, `EXPIRED` or `REMOVED`

Product

Represents a product or product line. Typically, products group together plans and add-ons.

Table: PRODUCTS

Column	Type	Mandatory	Description
ID	VARCHAR	Yes	Product internal identifier
DISPLAY_NAME	VARCHAR		Display name of the product
PRODUCT_ID	VARCHAR	Yes	Product identifier
DESCRIPTION	VARCHAR		Description of the product
CREATED_AT	TIMESTAMP_TZ	Yes	Creation date and time of the product
UPDATED_AT	TIMESTAMP_TZ	Yes	Last update date and time
ENVIRONMENT_ID	VARCHAR	Yes	Identifier for the associated environment
MULTIPLE_SUBSCRIPTIONS	BOOLEAN	Yes	Supports multiple subscriptions, each resource can have a separate subscription
ADDITIONAL_META_DATA	VARCHAR		Additional metadata for the product

Plan

Represents a package of a product for which customers are charged during a subscription period. The features included in each plan are defined by entitlements associated with the plan. Plans can inherit features from one another.

Table: PLANS

Column	Type	Mandatory	Description
ID	VARCHAR	Yes	Plan internal identifier
CREATED_AT	TIMESTAMP_TZ	Yes	Creation date and time of the plan
UPDATED_AT	TIMESTAMP_TZ	Yes	Last update date and time of the plan
PLAN_ID	VARCHAR	Yes	Plan identifier
BILLING_ID	VARCHAR		Billing identifier (Stripe ID)
BILLING_LINK_URL	VARCHAR		URL for billing information
DISPLAY_NAME	VARCHAR	Yes	Display name of the plan
PRICING_TYPE	VARCHAR		Enum. Type of pricing used for the plan. Can be one of: FREE, PAID, CUSTOM.
DESCRIPTION	VARCHAR		Description of the plan
ENVIRONMENT_ID	VARCHAR	Yes	Identifier for the associated environment
IS_LATEST	BOOLEAN		Indicates if this is the latest version of the plan
VERSION_NUMBER	NUMBER		Version number of the plan
ADDITIONAL_META_DATA	VARCHAR		Additional metadata for the plan
PRODUCT_ID	VARCHAR	Yes	Associated product identifier
BASE_PLAN_ID	VARCHAR		Parent plan identifier if this is a child plan

Add-on

Represents a package that extends specific plans. Add-ons are dependent on the lifecycle of the plan they extend; meaning, when a subscription expires, customers also lose access to the plan’s add-ons. The features included in each add-on are defined by entitlements associated with the add-on.

Table: ADDONS

Column	Type	Mandatory	Description
ID	VARCHAR	Yes	Add-on internal identifier
CREATED_AT	TIMESTAMP_TZ	Yes	Creation date and time
UPDATED_AT	TIMESTAMP_TZ	Yes	Last update date and time
ADDON_ID	VARCHAR	Yes	Add-on identifier
BILLING_ID	VARCHAR		Billing identifier (Stripe ID)
BILLING_LINK_URL	VARCHAR		URL for billing information of the add-on
DISPLAY_NAME	VARCHAR	Yes	Display name of the add-on
PRICING_TYPE	VARCHAR		Enum. Pricing type used for the add-on. Can be one of: FREE, PAID, CUSTOM. For add-ons, the value is always PAID.
DESCRIPTION	VARCHAR		Description of the add-on
ENVIRONMENT_ID	VARCHAR		Identifier for the associated environment
PRODUCT_ID	VARCHAR		Identifier for the associated product
IS_LATEST	BOOLEAN		Indicates if this is the latest version of the add-on
VERSION_NUMBER	NUMBER	Yes	Version number of the add-on
ADDITIONAL_META_DATA	VARCHAR		Additional metadata for the add-on

Price

Represents the price of a package and its settings.

Table: PRICES

Column	Type	Mandatory	Description
ID	VARCHAR	Yes	Price internal identifier
CREATED_AT	TIMESTAMP_TZ	Yes	Creation date and time of the price
UPDATED_AT	TIMESTAMP_TZ	Yes	Last update date and time
BILLING_PERIOD	VARCHAR	Yes	Enum. Billing period associated with the price. Can be one of: MONTHLY, ANNUALLY.
BILLING_MODEL	VARCHAR	Yes	Enum. Billing model used for this price. Can be one of: FLAT_FEE, PER_UNIT, USAGE_BASED.
BILLING_ID	VARCHAR		Billing identifier associated with the price
PRICE_AMOUNT	NUMBER		Monetary value of the price
PRICE_CURRENCY	VARCHAR		Currency of the price
BILLING_COUNTRY_CODE	VARCHAR		Country code for billing
FEATURE_ID	VARCHAR		Identifier for the associated feature
MIN_UNIT_QUANTITY	NUMBER		Minimum unit quantity for applying this price
PACKAGE_ID	VARCHAR		Identifier for the associated package, can belong to a plan or an add-on
MAX_UNIT_QUANTITY	NUMBER		Maximum unit quantity for applying this price
ENVIRONMENT_ID	VARCHAR	Yes	Environment identifier
TIERS_MODE	VARCHAR		Enum. Mode of tiers for the price, if pricing is tiered. Can be one of: VOLUME, VOLUME_PER_UNIT, GRADUATED.
TIERS	VARCHAR		Tiers associated with the price. List of JSON objects with the following structure: `{ upTo: Float!; unitPriceAmount: Float!; unitPriceCurrency: String!; }`

Package Entitlement

Represents a feature entitlement associated with a plan or add-on.

Table: PACKAGE_ENTITLEMENTS

Column	Type	Mandatory	Description
ID	VARCHAR	Yes	Unique identifier for the package entitlement
DESCRIPTION	VARCHAR		Description of the package entitlement
FEATURE_ID	VARCHAR	Yes	Identifier for the associated feature
PACKAGE_ID	VARCHAR	Yes	Identifier for the associated package
CREATED_AT	TIMESTAMP_TZ		Creation date and time of the package entitlement
UPDATED_AT	TIMESTAMP_TZ		Last update date and time of the package entitlement
USAGE_LIMIT	NUMBER		Usage limit for the entitlement
HAS_UNLIMITED_USAGE	BOOLEAN		Indicates if the entitlement has unlimited usage
IS_CUSTOM	BOOLEAN		Indicates if the entitlement is custom
ENVIRONMENT_ID	VARCHAR	Yes	Identifier for the associated environment
RESET_PERIOD	VARCHAR		Enum. Reset period for the entitlement. Can be one of: MONTH, WEEK, DAY, HOUR.

Promotional Entitlement

Represents ad-hoc entitlements that are given to a specific customer. Promotional entitlements can be granted to customers for a limited time period or throughout their entire lifetime.

Table: PROMOTIONAL_ENTITLEMENTS

Column	Type	Mandatory	Description
ID	VARCHAR	Yes	Unique identifier for the promotional entitlement
DESCRIPTION	VARCHAR		Description of the promotional entitlement
CUSTOMER_ID	VARCHAR	Yes	Associated customer identifier
FEATURE_ID	VARCHAR	Yes	Identifier for the associated feature
CREATED_AT	TIMESTAMP_TZ	Yes	Creation date and time of the entitlement
UPDATED_AT	TIMESTAMP_TZ	Yes	Last update date and time of the entitlement
START_DATE	TIMESTAMP_TZ	Yes	Start date of the promotional entitlement
END_DATE	TIMESTAMP_TZ		End date of the promotional entitlement
USAGE_LIMIT	NUMBER		Usage limit for the entitlement
HAS_UNLIMITED_USAGE	BOOLEAN		Indicates if the entitlement has unlimited usage
STATUS	VARCHAR	Yes	Enum. Status of the promotional entitlement. Can be one of: Active, Expired, Paused.
PERIOD	VARCHAR	Yes	Enum. Period of the promotional entitlement. Can be one of: ONE_WEEK, ONE_MONTH, SIX_MONTH, ONE_YEAR, LIFETIME, CUSTOM.
RESET_PERIOD	VARCHAR		Enum. Reset period for the entitlement. Can be one of: MONTH, WEEK, DAY, HOUR.
ENVIRONMENT_ID	VARCHAR		Identifier for the associated environment

Feature

Represents a configurable functionality in the product that can be monetized.

Table: FEATURES

Column	Type	Mandatory	Description
ID	VARCHAR	Yes	Feature internal identifier
DISPLAY_NAME	VARCHAR	Yes	Display name of the feature
FEATURE_ID	VARCHAR	Yes	Feature identifier
CREATED_AT	TIMESTAMP_TZ	Yes	Creation date and time of the feature
UPDATED_AT	TIMESTAMP_TZ	Yes	Last update date and time of the feature
FEATURE_UNITS	VARCHAR		Units in which the feature is measured
FEATURE_UNITS_PLURAL	VARCHAR		Plural form of the feature units
DESCRIPTION	VARCHAR		Description of the feature
FEATURE_TYPE	VARCHAR	Yes	Enum. Type of the feature. Can be one of: BOOLEAN, NUMBER.
METER_TYPE	VARCHAR		Enum. Meter type of the feature. Can be one of: None, Fluctuating, Incremental.
ENVIRONMENT_ID	VARCHAR	Yes	Identifier for the associated environment
ADDITIONAL_META_DATA	VARCHAR		Additional metadata for the feature

Entitlement

Represents the right to use an application feature, and to what extent. In Stigg, customer entitlements can be granted from multiple sources: plans, add-ons, overlapping trial subscriptions, promotional entitlements, and additional products.

Entitlements are typically computed and cached. If one of the entitlement sources changes, the entitlements need to be refreshed. You can read about how entitlements are calculated here.

Table: ENTITLEMENTS

Column	Type	Mandatory	Description
ID	VARCHAR	Yes	Entitlement internal identifier
CREATED_AT	TIMESTAMP_TZ	Yes	Creation date and time of the entitlement
UPDATED_AT	TIMESTAMP_TZ	Yes	Last update date and time of the entitlement
ENVIRONMENT_ID	VARCHAR	Yes	Identifier for the associated environment
CUSTOMER_UUID	VARCHAR	Yes	Customer internal identifier
CUSTOMER_ID	VARCHAR	Yes	Customer identifier
RESOURCE_UUID	VARCHAR		Resource internal identifier
RESOURCE_ID	VARCHAR		Resource identifier
FEATURE_UUID	VARCHAR	Yes	Feature internal identifier
FEATURE_ID	VARCHAR	Yes	Feature identifier
IS_DELETED	BOOLEAN	Yes	Indicates whether the entitlement was deleted and is no longer applicable
CURRENT_USAGE	NUMBER		Current usage of the entitlement
USAGE_LIMIT	NUMBER		Usage limit for the entitlement
HAS_UNLIMITED_USAGE	BOOLEAN		Indicates if the entitlement has unlimited usage
USAGE_PERIOD_ANCHOR	TIMESTAMP_TZ		The anchor for calculating the usage period for metered entitlements with a reset period configured
USAGE_PERIOD_START	TIMESTAMP_TZ		The start date of the usage period for metered entitlements with a reset period configured
USAGE_PERIOD_END	TIMESTAMP_TZ		The end date of the usage period for metered entitlements with a reset period configured
RESET_PERIOD	VARCHAR		Enum. Reset period for the entitlement. Can be one of: MONTH, WEEK, DAY, HOUR.
RESET_PERIOD_MONTHLY_ACCORDING_TO	VARCHAR		Enum. Configuration for the monthly reset period. Can be one of: SubscriptionStart, StartOfTheMonth.
RESET_PERIOD_WEEKLY_ACCORDING_TO	VARCHAR		Enum. Configuration for the weekly reset period. Can be one of: SubscriptionStart, EverySunday, EveryMonday, EveryTuesday, EveryWednesday, EveryThursday, EveryFriday, EverySaturday.

Usage Measurement

Represents calculated usage reports associated with a customer for a metered feature.

Table: USAGE_MEASUREMENTS

Column	Type	Mandatory	Description
ID	VARCHAR	Yes	Usage measurement internal identifier
CUSTOMER_ID	VARCHAR	Yes	Customer identifier
RESOURCE_ID	VARCHAR		Resource identifier
FEATURE_ID	VARCHAR	Yes	Feature identifier
CREATED_AT	TIMESTAMP_TZ	Yes	Creation date and time of the usage measurement
UPDATED_AT	TIMESTAMP_TZ	Yes	Last update date and time of the usage measurement
VALUE	NUMBER	Yes	Reported usage value reflects a change in usage, i.e., the delta, at the time of the report
RESET_PERIOD	VARCHAR		Enum. Reset period for the entitlement of the measurement. Can be one of: MONTH, WEEK, DAY, HOUR.
PERIOD_START	TIMESTAMP_TZ		Reset period window start time
PERIOD_END	TIMESTAMP_TZ		Reset period window end time
ENVIRONMENT_ID	VARCHAR	Yes	Identifier for the associated environment

Usage Events

Represents the raw usage events associated with a customer.

📘
To enable reporting of raw usage events, please contact Stigg support.

Table: USAGE_EVENTS_<ENVIRONMENT_ID>

Column	Type	Mandatory	Description
ID	VARCHAR	Yes	Usage event internal identifier
CUSTOMER_ID	VARCHAR	Yes	Customer identifier
RESOURCE_ID	VARCHAR		Resource identifier
EVENT_NAME	VARCHAR	Yes	The name of the event
CREATED_AT	TIMESTAMP_TZ	Yes	Creation time injested of the event
TIMESTAMP	TIMESTAMP_TZ	Yes	The timestamp of the event (What is passed to the request)
DIMENSIONS	VARCHAR	Yes	Additional dimensions of the event which are used for the filtering and aggregation
IDEMPOTENCY_KEY	VARCHAR	Yes	The events unique key.
ENVIRONMENT_ID	VARCHAR	Yes	Identifier for the associated environment

📘
When enabled, the usage_events table will also include events of calculated usage reports that were made to Stigg. Such reports will appear as $usage.reported events.

Coupon

Represents a discount coupon that can be applied to a customer.

Table: COUPONS

Column	Type	Mandatory	Description
ID	VARCHAR	Yes	Coupon internal identifier
COUPON_ID	VARCHAR	Yes	Coupon identifier
NAME	VARCHAR	Yes	Coupon name
DESCRIPTION	VARCHAR		Coupon description
BILLING_ID	VARCHAR		Identifier of the coupon in the billing solution that’s integrated with Stigg, i.e. Stripe ID
BILLING_LINK_URL	VARCHAR		URL for the coupon entity in the billing solution that’s integrated with Stigg
CREATED_AT	TIMESTAMP_TZ	Yes	Creation date and time of the coupon
UPDATED_AT	TIMESTAMP_TZ	Yes	Last update date and time of the coupon
TYPE	VARCHAR	Yes	Enum. Coupon discount type. Can be one of: FIXED, PERCENTAGE.
DISCOUNT_VALUE	NUMBER	Yes	Represents the discount value either a fixed or percentage amount. Note: this field is deprecated, please use `PERCENT_OFF` and `AMOUNTS_OFF` instead.
AMOUNTS_OFF	VARCHAR		Fixed price discounts in multiple-currency. List of JSON objects with the following structure: `{ amount: Float!; currency: String!; }`
PERCENT_OFF	NUMBER		Percentage off discount
STATUS	VARCHAR	Yes	Enum. Coupon status. Can be one of: `ACTIVE`, `ARCHIVED`.
ADDITIONAL_META_DATA	VARCHAR		Additional metadata
ENVIRONMENT_ID	VARCHAR	Yes	Identifier for the associated environment

Schema

Available data types

Notes

Customer

Customer Resource

Subscription

Subscription Price

Subscription Add-on

Subscription Applied Coupons

Product

Plan

Add-on

Price

Package Entitlement

Promotional Entitlement

Feature

Entitlement

Usage Measurement

Usage Events

📘
To enable reporting of raw usage events, please contact Stigg support.

📘
When enabled, the usage_events table will also include events of calculated usage reports that were made to Stigg. Such reports will appear as `$usage.reported` events.

Coupon

Available data types

Notes

Customer

Customer Resource

Subscription

Subscription Price

Subscription Add-on

Subscription Applied Coupons

Product

Plan

Add-on

Price

Package Entitlement

Promotional Entitlement

Feature

Entitlement

Usage Measurement

Usage Events

📘To enable reporting of raw usage events, please contact Stigg support.

📘When enabled, the usage_events table will also include events of calculated usage reports that were made to Stigg. Such reports will appear as $usage.reported events.

Coupon

📘
To enable reporting of raw usage events, please contact Stigg support.

📘
When enabled, the usage_events table will also include events of calculated usage reports that were made to Stigg. Such reports will appear as `$usage.reported` events.
