Setting up governance

This guide covers the catalog setup you make as the vendor — both from the Stigg console and via the SDK. Most of these are one-time or infrequent operations; the Check and Ingest calls happen per-request at runtime.

Via the Stigg console

Define entity types

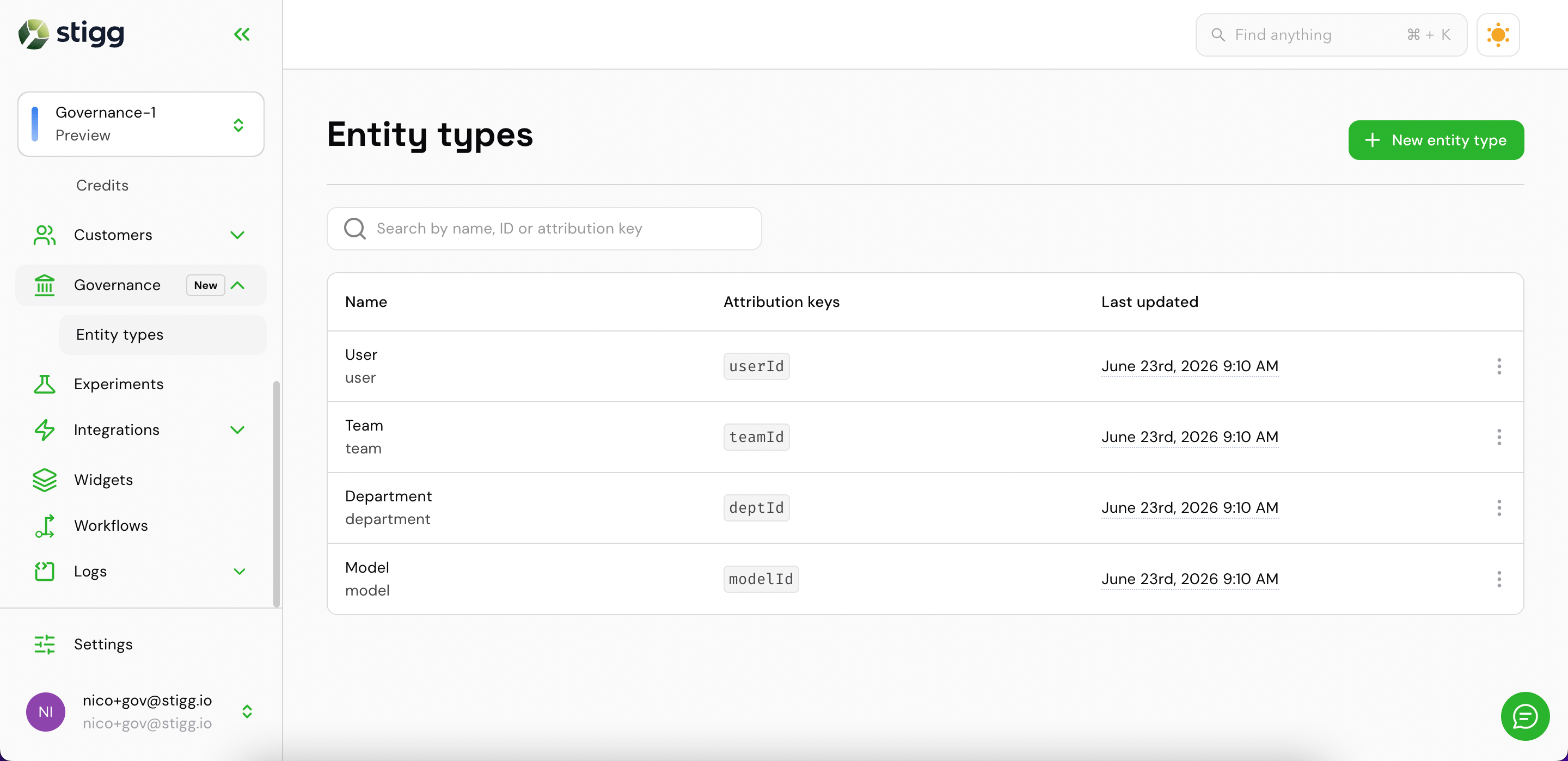

In the Stigg app, go to Governance → Entity types. The list shows all entity types defined for the environment, along with their attribution keys and the last time each was updated.

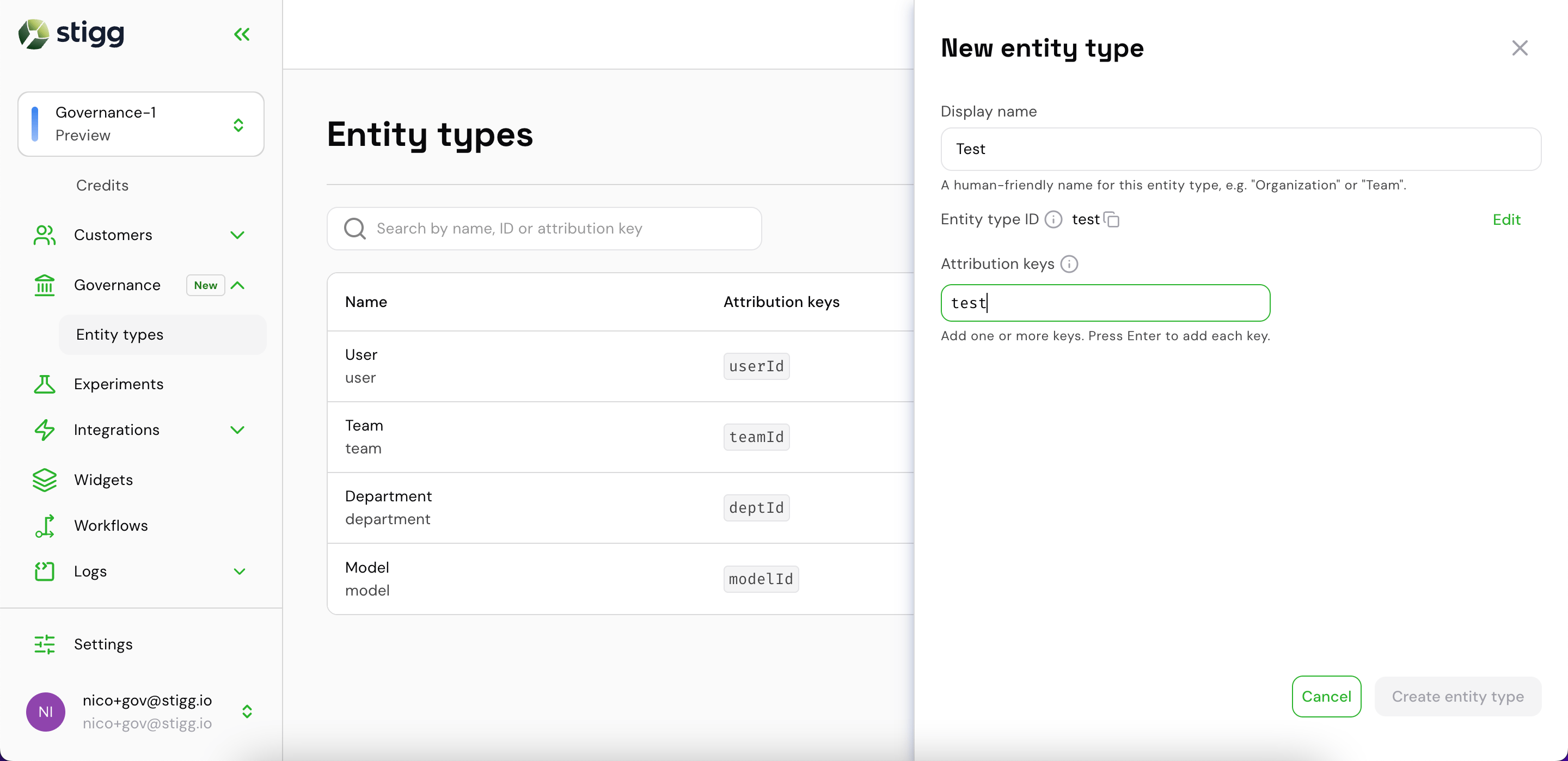

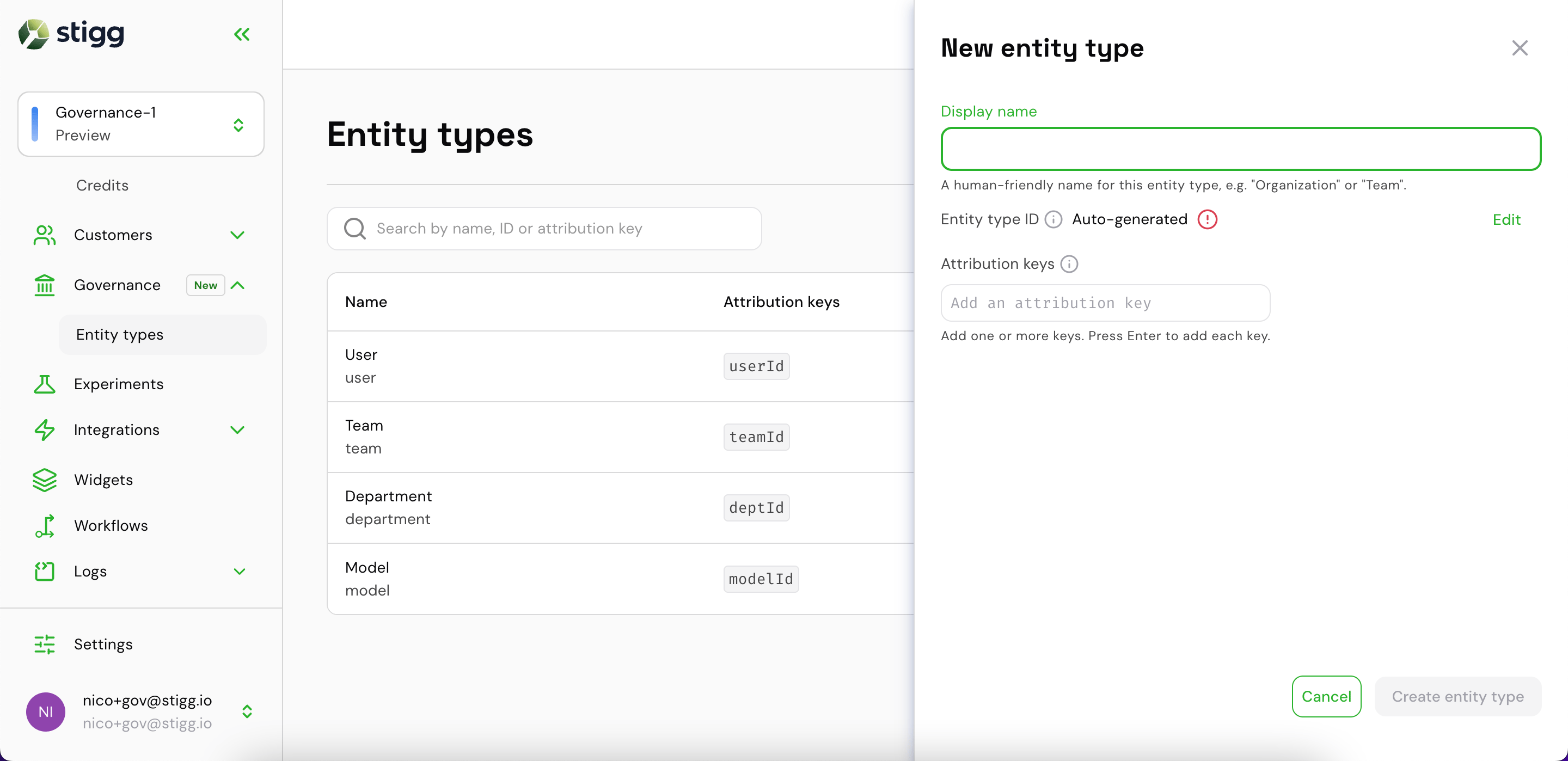

Click + New entity type to open the creation drawer.

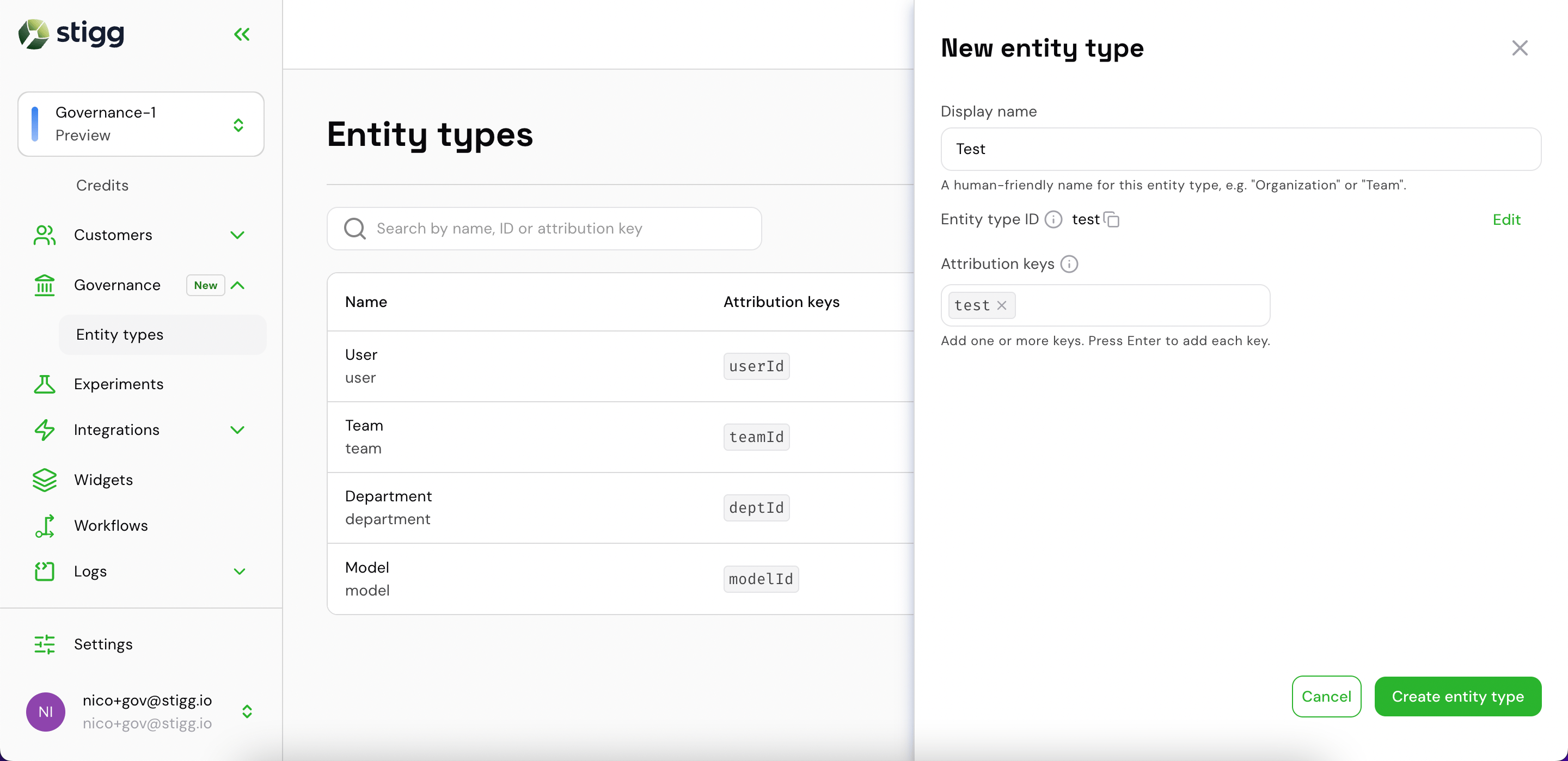

Fill in:

Display name — a human-readable label (e.g. Organization). The entity type ID is auto-generated from it and can be edited.
Attribution keys — the dimension keys your usage events carry to identify instances of this type (e.g. orgId). Type a key and press Enter to add it; multiple keys are supported.

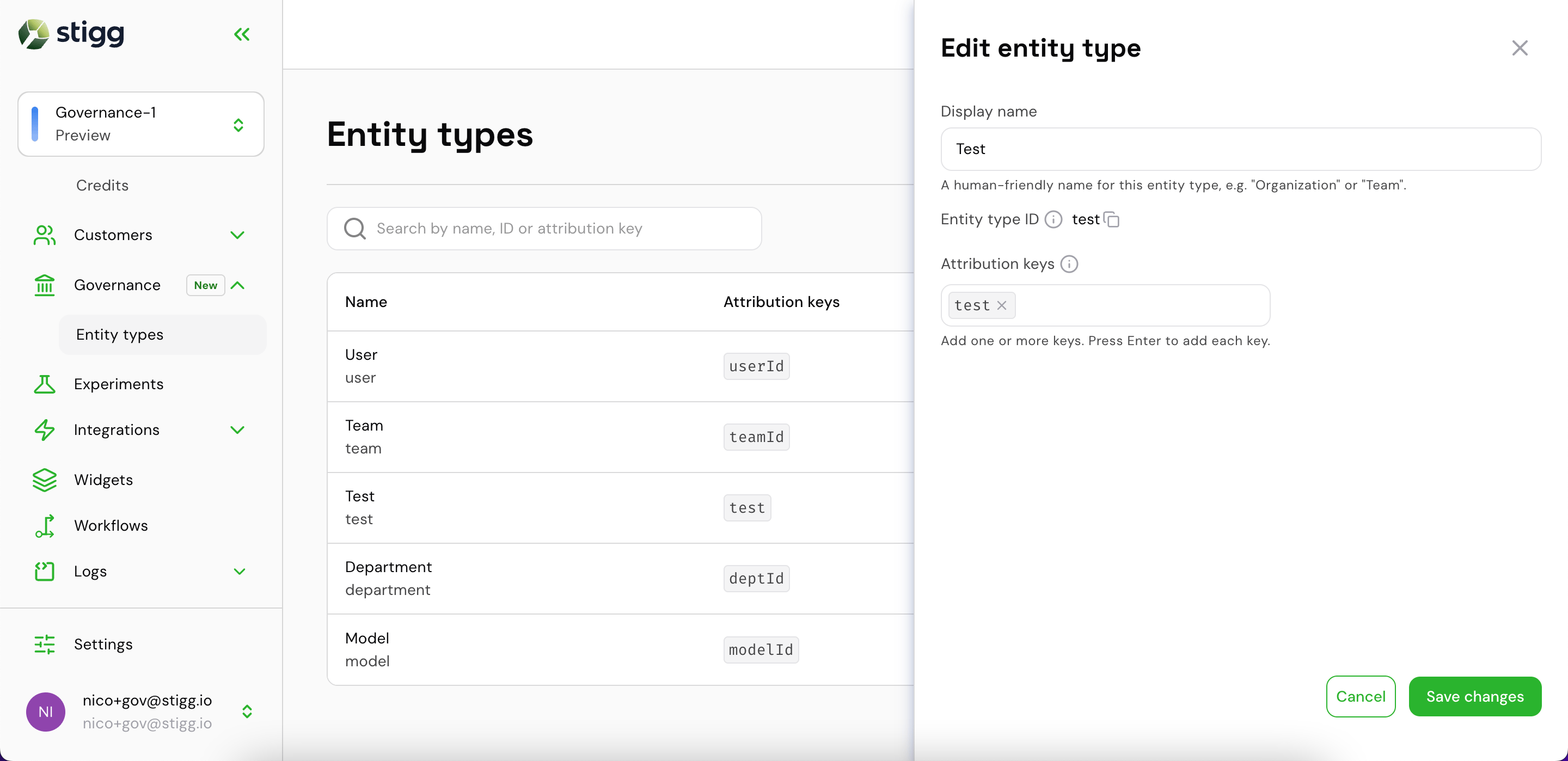

Once created, the new type appears in the list. Hover a row and click the ⋮ menu to Edit it.

View and manage entities for a customer

To view governance data for a specific customer:

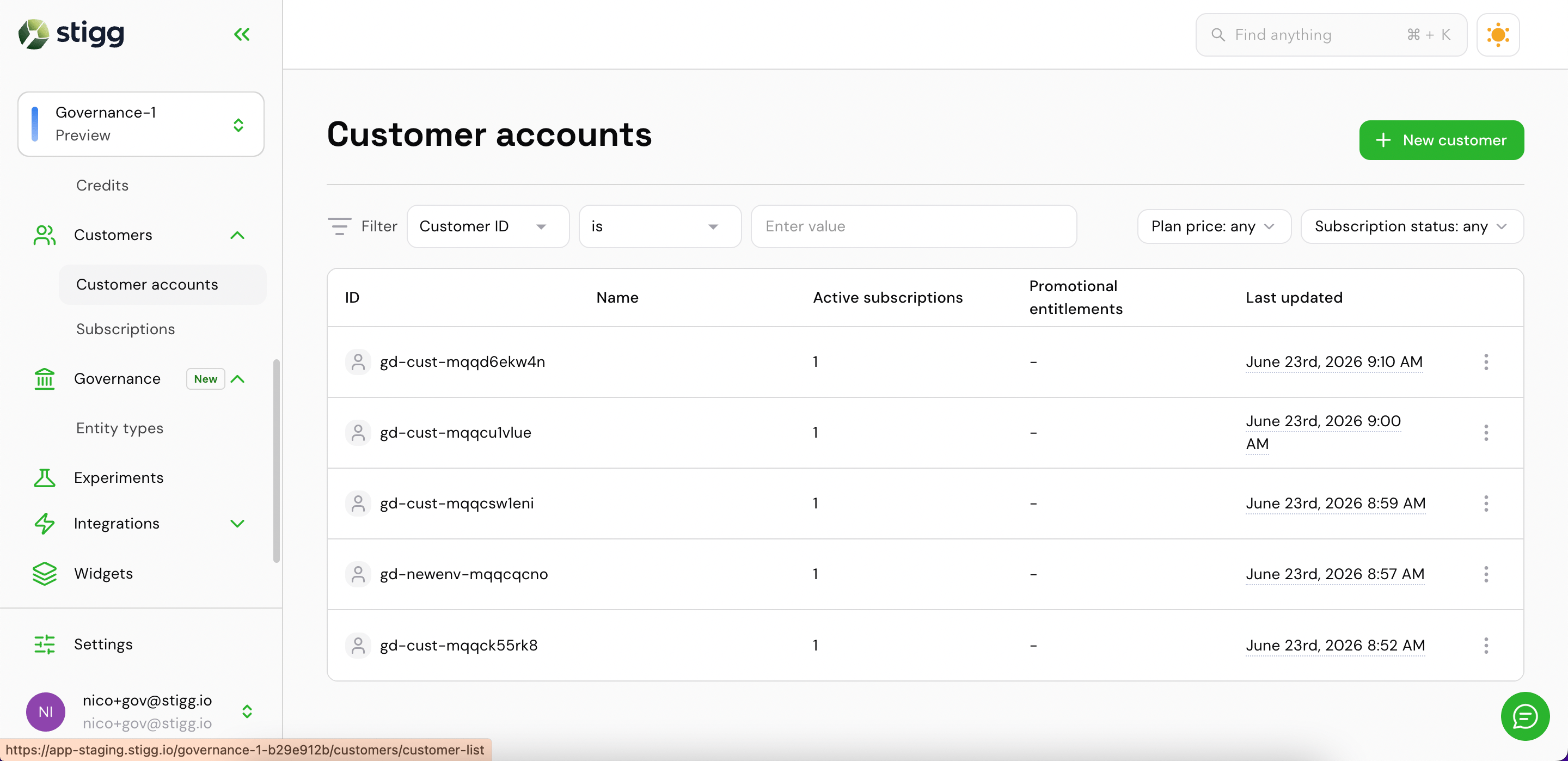

Go to Customers → Customer accounts and open the customer record.

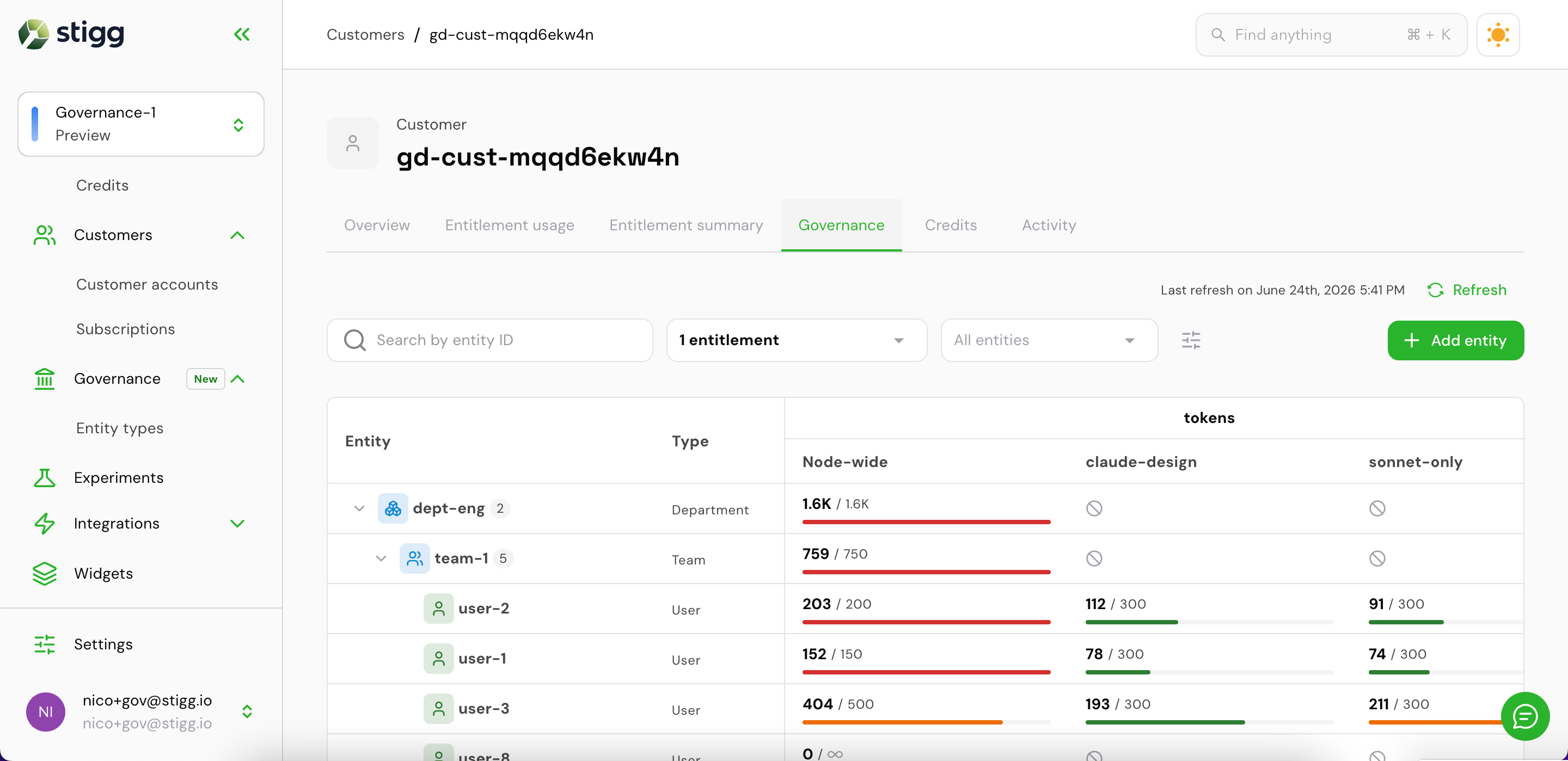

Click the Governance tab.

The tab shows the customer’s entity hierarchy on the left, their entity types in the Type column, and — for each entitlement — the current usage vs. limit broken out by scope (Node-wide and per-model or other dimension).

Sort and prioritize entities

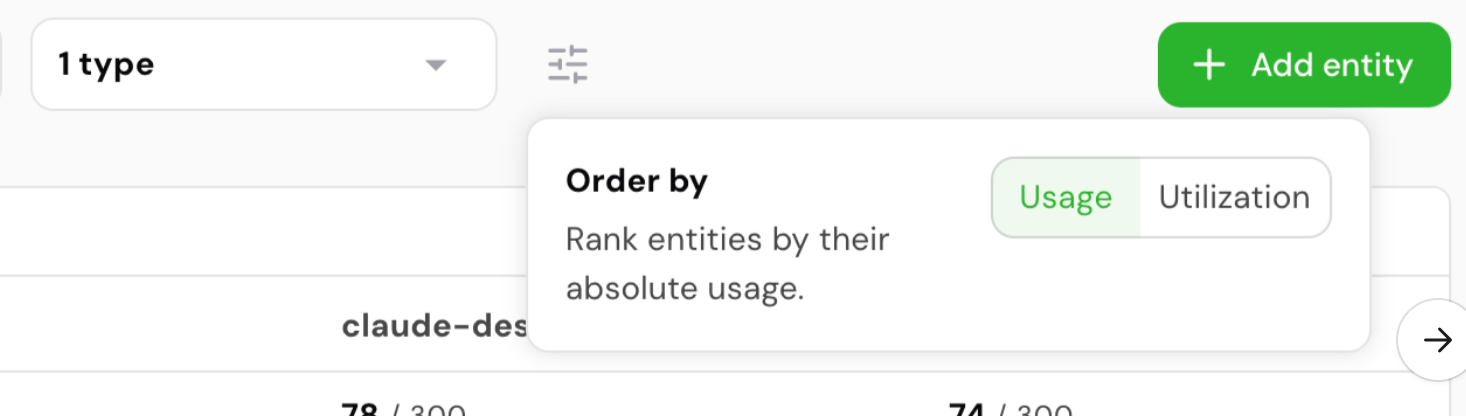

Use the Order by control (the sliders icon next to the type filter) to rank entities by consumption. Two modes are available:

Usage — ranks by absolute consumption, so the heaviest consumers appear first
Utilization — ranks by percentage of limit used, so entities closest to being blocked surface first

Switching to Utilization is the fastest way to spot entities that are about to hit their limit and may need a budget increase or intervention before they get blocked.

Add an entity to a customer

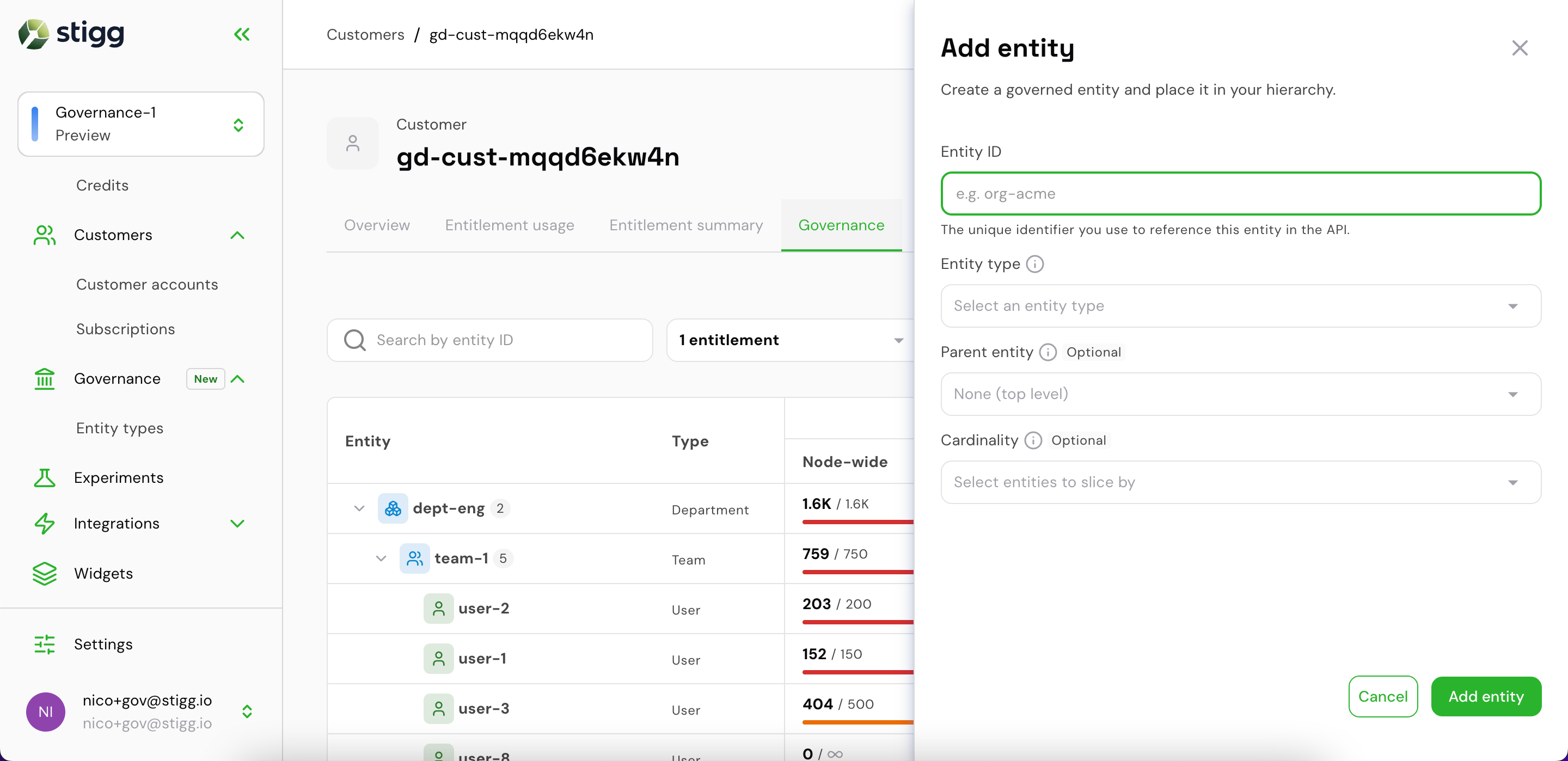

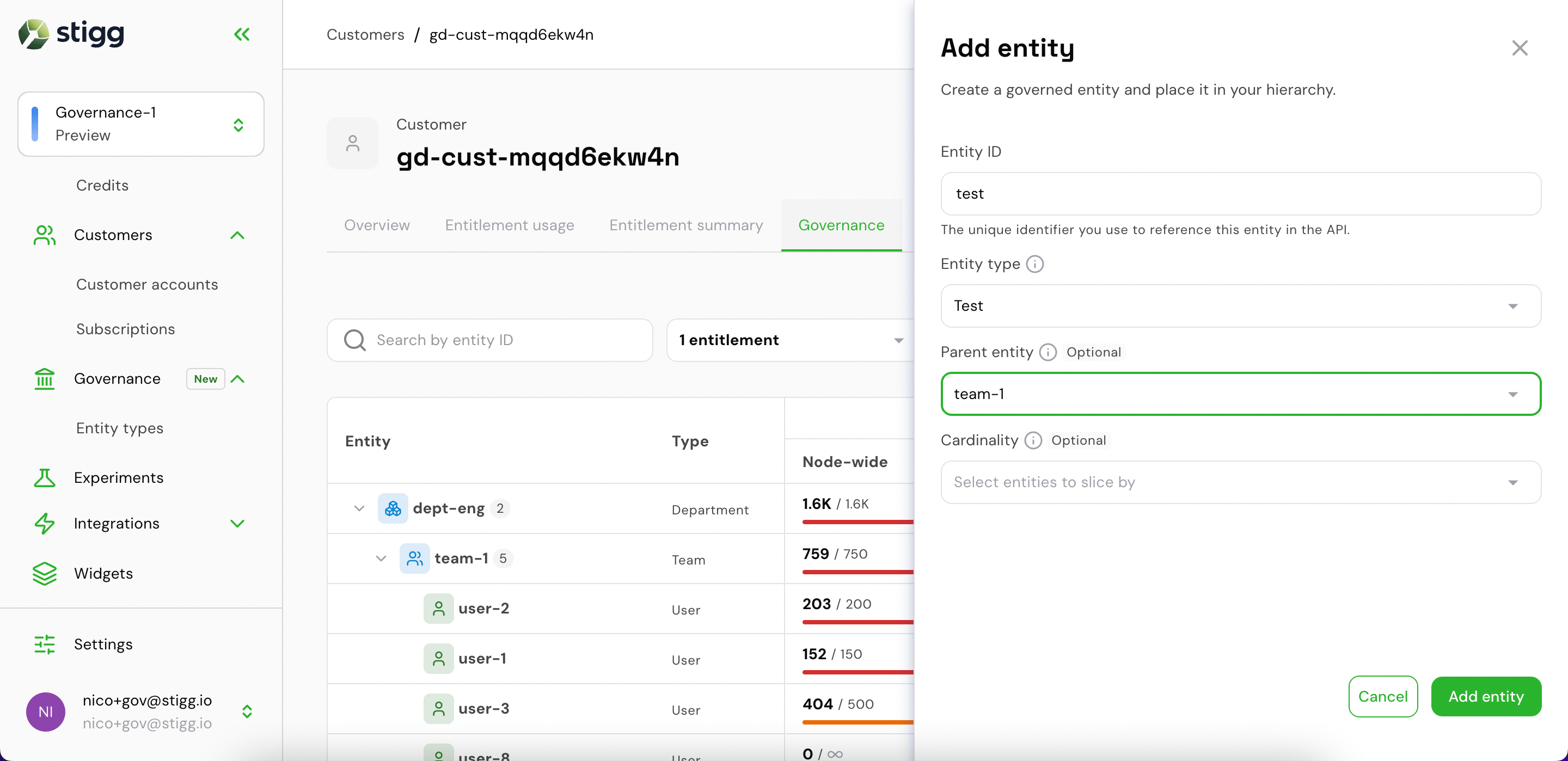

Click + Add entity to open the drawer.

Fill in:

Entity ID — the unique identifier used in API calls (e.g. org-acme)

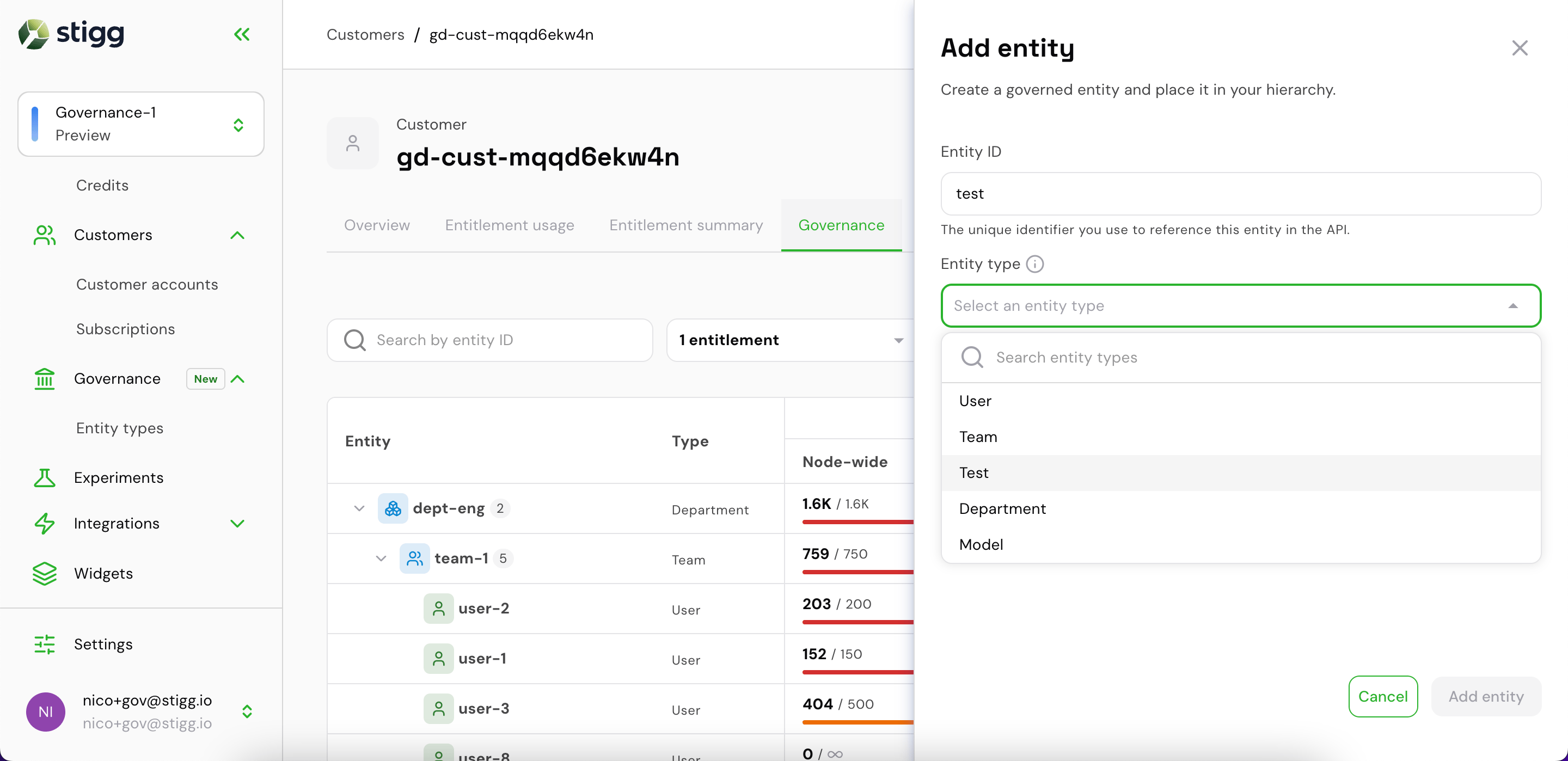

Entity type — select from the entity types defined for this environment

Parent entity (optional) — place this entity under a parent in the hierarchy (e.g. nest a user under a team)

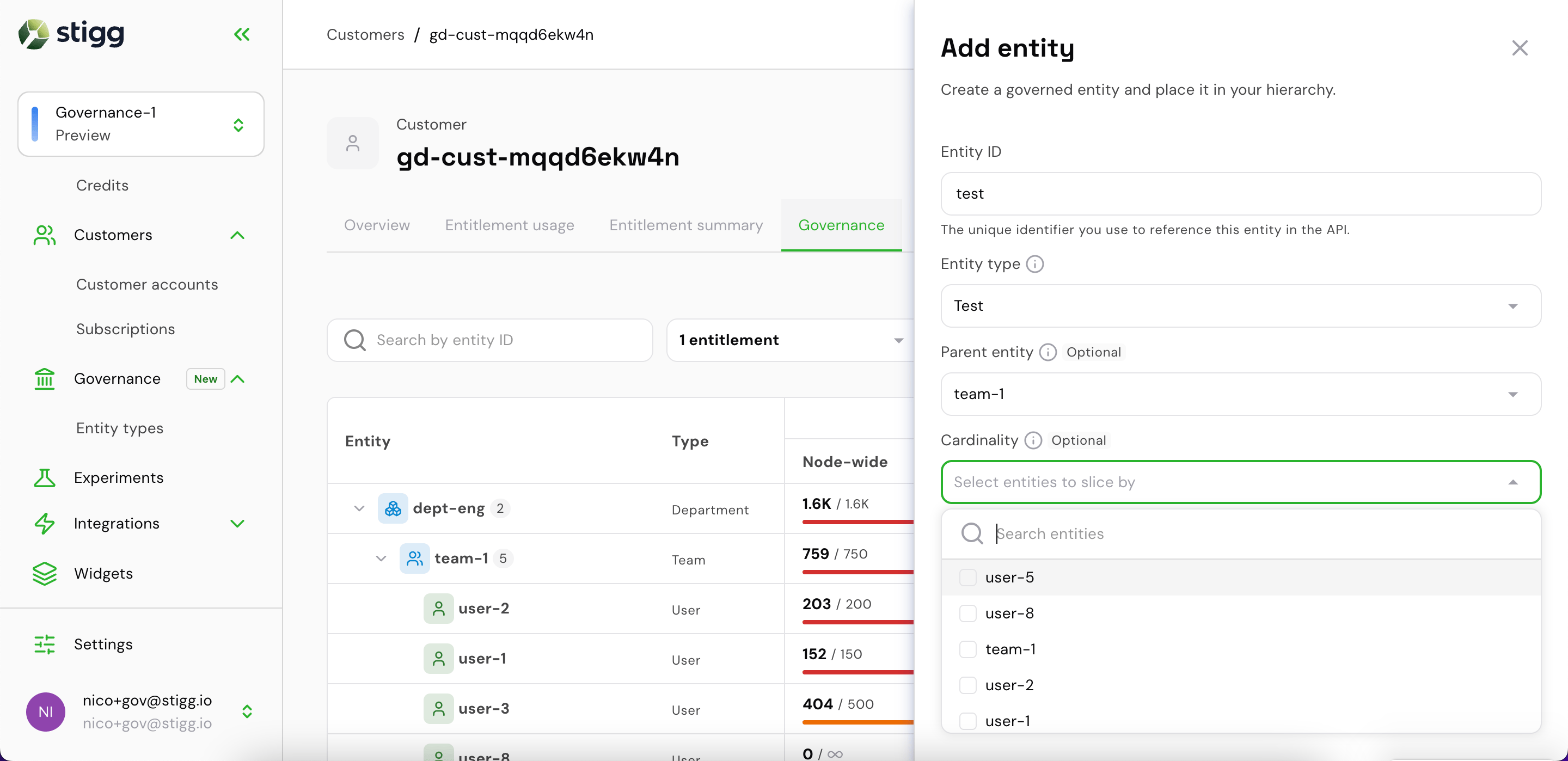

Cardinality (optional) — restrict this entity’s budget to a specific sub-context by selecting entities to slice by

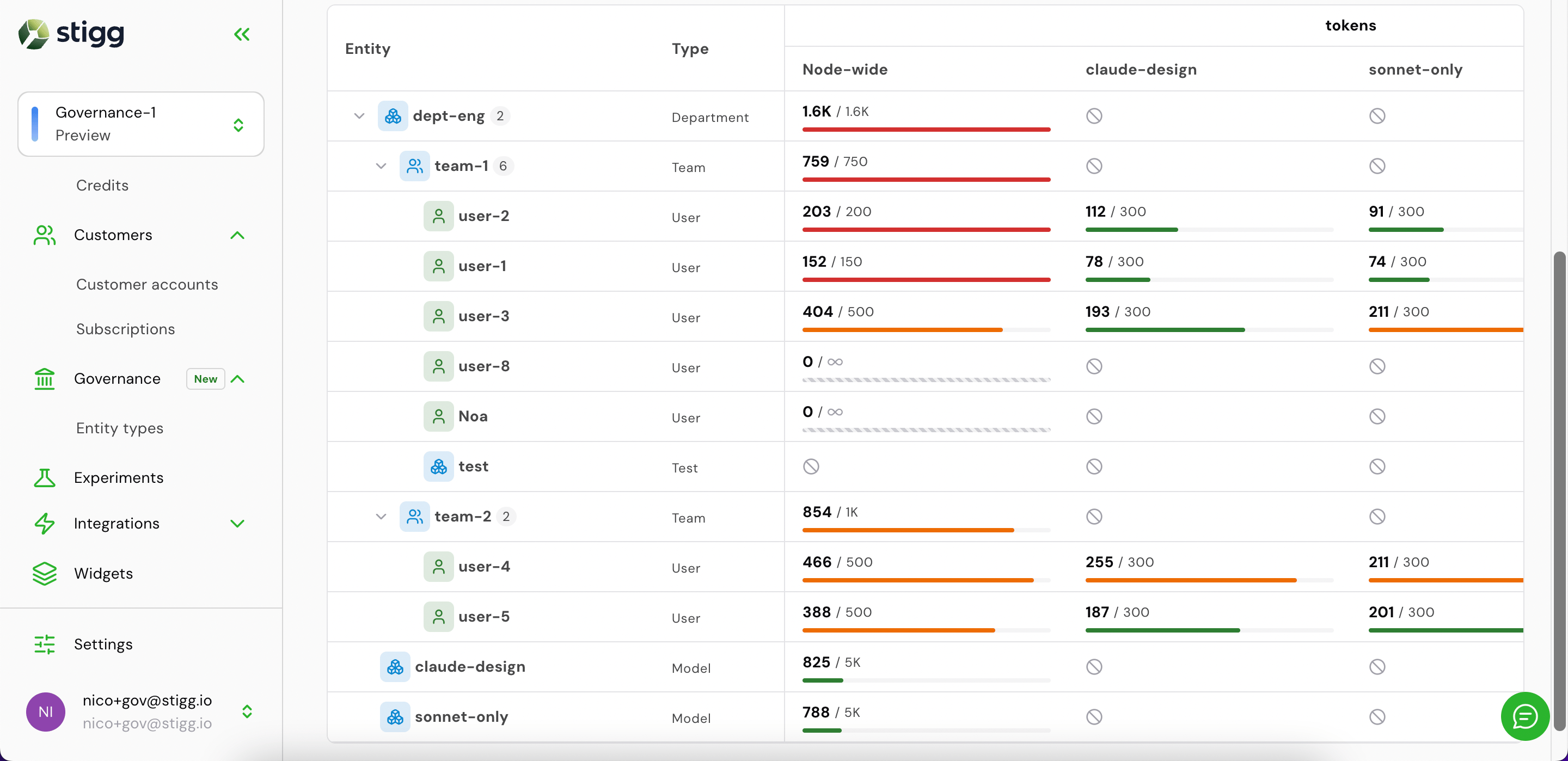

After adding entities, the full hierarchy is visible in the Governance tab with all entitlement columns.

Edit an entitlement value inline

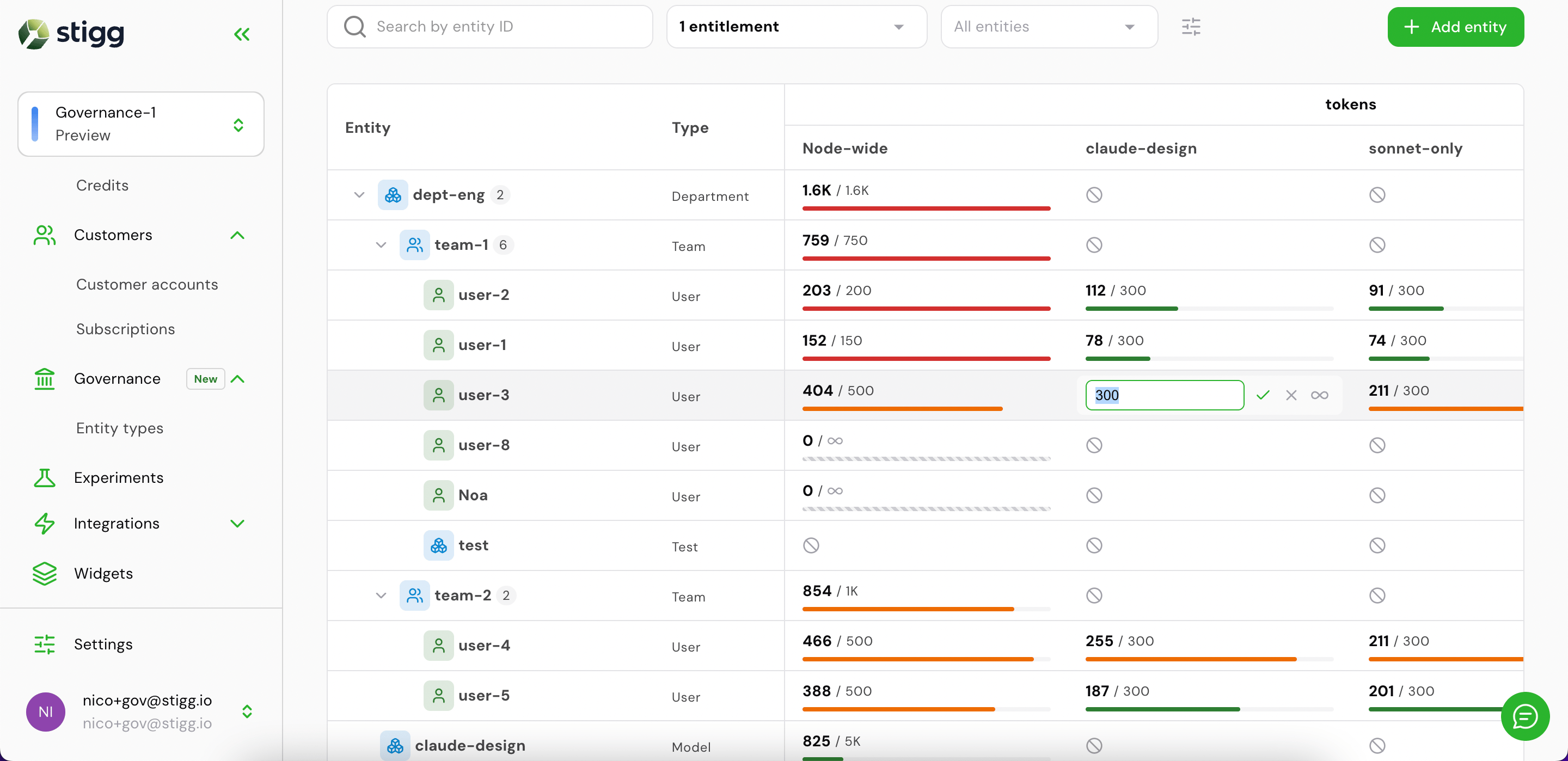

Click any entitlement cell in the Governance tab to edit the limit value inline, then confirm with the checkmark.

Via the SDK

Installation

npm install @stigg/governance-client

Initializing the client

Create one client instance per process and reuse it across your codebase.

import { createGovernanceClient } from '@stigg/governance-client';

const governance = createGovernanceClient({
  baseUrl:       process.env.GOVERNANCE_API_URL,
  accessToken:   process.env.GOVERNANCE_ACCESS_TOKEN,
  accountId:     process.env.STIGG_ACCOUNT_ID,
  environmentId: process.env.STIGG_ENVIRONMENT_ID,
  caller:        'my-app',
});

Option	Description
`baseUrl`	Base URL of the Governance API
`accessToken`	Static Bearer token for server-to-server auth
`auth`	M2M client-credentials config (alternative to `accessToken`)
`accountId`	Your Stigg account ID
`environmentId`	The target environment ID
`caller`	Identifier for the calling service, used in logs

The client exposes six namespaces: governance.entityTypes, governance.entities, governance.capabilities, governance.assignments, governance.check, governance.ingest. Every method returns an Axios response — access .data to get the payload.

Step 1 — Define entity types

Entity types are the categories of resource you want to govern (e.g., org, team, user, agent). Define them once per environment. The attributionKeys are the dimension keys your ingest events carry to identify instances of each type.

const { data: entityTypes } = await governance.entityTypes.entityTypeControllerUpsert({
  types: [
    { id: 'org',   displayName: 'Organization', attributionKeys: ['orgId'] },
    { id: 'team',  displayName: 'Team',         attributionKeys: ['teamId'] },
    { id: 'user',  displayName: 'User',         attributionKeys: ['userId'] },
    { id: 'agent', displayName: 'AI agent',     attributionKeys: ['agentId'] },
  ],
});
// entityTypes: EntityTypeResponse[]

The upsert is idempotent — re-submitting the same payload is safe. Up to 100 types per request. Response (200 OK):

[
  {
    "id": "org",
    "displayName": "Organization",
    "attributionKeys": ["orgId"],
    "createdAt": "2026-01-15T10:00:00.000Z",
    "updatedAt": "2026-01-15T10:00:00.000Z"
  }
]

Listing entity types

const { data } = await governance.entityTypes.entityTypeControllerList(
  undefined, // after cursor
  undefined, // before cursor
  20,        // limit
);
// data.data: EntityTypeResponse[]
// data.pagination: { next, prev }

Step 2 — Define capabilities

Capabilities are the metered resources you track (e.g., api-calls, ai-tokens, seats). All capabilities are of type METER in V1.

const { data: capabilities } = await governance.capabilities.capabilityControllerUpsert({
  capabilities: [
    { id: 'api-calls', type: 'METER' },
    { id: 'ai-tokens', type: 'METER' },
    { id: 'seats',     type: 'METER' },
  ],
});

Response (200 OK):

[
  {
    "id": "api-calls",
    "type": "METER",
    "createdAt": "2026-01-15T10:00:00.000Z",
    "updatedAt": "2026-01-15T10:00:00.000Z"
  }
]

Fetching a single capability

const { data: capability } = await governance.capabilities.capabilityControllerGet('api-calls');

Step 3 — Provision entities per customer

When a customer creates an org, team, or user in your product, provision the corresponding entity in governance. The ownerId is the customer’s ID in your system.

const customerId = 'cus-acme';

const { data: entities } = await governance.entities.entityControllerUpsert(customerId, {
  entities: [
    { id: 'org-acme',     typeRefId: 'org',   metadata: { plan: 'enterprise' } },
    { id: 'team-eng',     typeRefId: 'team' },
    { id: 'team-product', typeRefId: 'team' },
    { id: 'agent-claude', typeRefId: 'agent' },
  ],
});

Up to 100 entities per request. Idempotent — safe to re-run during re-syncs. Metadata patch semantics: keys present in metadata are merged over existing values. Set a key to "" to delete it. Omitting metadata entirely leaves the stored metadata unchanged. Response (200 OK):

[
  {
    "id": "org-acme",
    "typeId": "org",
    "metadata": { "plan": "enterprise" },
    "archivedAt": null,
    "createdAt": "2026-01-15T10:00:00.000Z",
    "updatedAt": "2026-01-15T10:00:00.000Z"
  }
]

Listing entities

// All active entities for the customer
const { data } = await governance.entities.entityControllerList('cus-acme');

// Filter by entity type
const { data: teams } = await governance.entities.entityControllerList(
  'cus-acme',
  undefined, // after
  undefined, // before
  20,        // limit
  'team',    // refId (type filter)
);

// Include archived
const { data: all } = await governance.entities.entityControllerList(
  'cus-acme',
  undefined, undefined, 20,
  undefined,
  'true', // includeArchived
);

Getting a single entity

const { data: entity } = await governance.entities.entityControllerGet('cus-acme', 'org-acme');

Archiving and unarchiving entities

Archiving is a soft-delete: the entity disappears from the list but remains accessible via GET-by-ID.

// Archive
await governance.entities.entityControllerArchive('cus-acme', { ids: ['team-old-project'] });

// Unarchive
await governance.entities.entityControllerUnarchive('cus-acme', { ids: ['team-old-project'] });

Both return 204 No Content.

Step 4 — Create assignments

Assignments set the usage limit for an (entity, capability) pair — they are the governance equivalent of entitlements, and appear as entitlement columns in the Stigg console’s Governance tab. They are typically created by your customers through an in-app interface, but you can also set them programmatically.

const { data: assignments } = await governance.assignments.assignmentControllerUpsert('cus-acme', {
  assignments: [
    {
      entityId:     'org-acme',
      capabilityId: 'ai-tokens',
      usageLimit:   1_000_000,
      cadence:      'P1M',
    },
    {
      entityId:     'team-eng',
      capabilityId: 'ai-tokens',
      parentId:     'org-acme',   // places team-eng under org-acme in the hierarchy
      usageLimit:   200_000,
      cadence:      'P1M',
    },
  ],
});

Patch semantics: on re-upsert, omitting usageLimit or cadence preserves the existing value. On first create, both are required. usageLimit: null — tracked but unlimited: setting usageLimit to null means usage is still counted and appears in check responses, but the limit never blocks. Useful for observability before enforcing. Response (200 OK):

[
  {
    "id": "a1b2c3d4-5e6f-4a7b-8c9d-0e1f2a3b4c5d",
    "entityId": "org-acme",
    "capabilityId": "ai-tokens",
    "scopeEntityIds": [],
    "usageLimit": 1000000,
    "cadence": "P1M",
    "parentId": null,
    "createdAt": "2026-01-15T10:00:00.000Z",
    "updatedAt": "2026-01-15T10:00:00.000Z"
  }
]

Hierarchy — placing entities in a tree

The parentId field places an entity under a parent in the governance hierarchy. The check endpoint evaluates every budget in the chain from the target entity to the root — a request is only granted when all budgets along the path allow it.

parentId is tri-state: omitting it leaves the current parent unchanged (new nodes default to root); null detaches the entity to root; a refId sets or changes the parent. Reparenting is only allowed for leaf nodes — a node with children cannot be moved.

Dimension-scoped sub-budgets

Add a tighter budget for a specific context by setting scopeEntityIds. The scoped budget applies only when every listed entity is present in the resolved set for the request.

await governance.assignments.assignmentControllerUpsert('cus-acme', {
  assignments: [
    // Node-wide budget — always applies
    { entityId: 'team-eng', capabilityId: 'ai-tokens', scopeEntityIds: [],             usageLimit: 200_000, cadence: 'P1M' },
    // Tighter budget — applies only when model-gpt4o is in the request context
    { entityId: 'team-eng', capabilityId: 'ai-tokens', scopeEntityIds: ['model-gpt4o'], usageLimit: 10_000,  cadence: 'P1M' },
  ],
});

Listing assignments

// All assignments for the customer
const { data } = await governance.assignments.assignmentControllerList('cus-acme');

// Filter by entity
const { data: byEntity } = await governance.assignments.assignmentControllerList(
  'cus-acme',
  undefined, undefined, 20,
  'team-eng', // entityId filter
);

// Filter by capability
const { data: byCap } = await governance.assignments.assignmentControllerList(
  'cus-acme',
  undefined, undefined, 20,
  undefined,
  'ai-tokens', // capabilityId filter
);
